Understanding the optimal use of shielding gases in welding processes is key to achieving high-quality welds. The industry recognizes two dominant types of welding — Tungsten Inert Gas (TIG) welding and Metal Inert Gas (MIG) welding. Selecting the appropriate gas and managing gas flow settings can significantly influence weld outcomes, stability, and precision.
The Intricacies of TIG Welding
TIG welding is praised for its precision, using a non-consumable tungsten electrode to produce a weld. This method is ideal for versatile applications, allowing professionals to work with diverse materials such as stainless steel and aluminum.
Optimal Shielding Gases for TIG Welding
To ensure the best results in TIG welding, welders commonly use:
- Pure Argon: Argon is the most prevalent shielding gas due to its versatility and ability to produce a clean, smooth weld bead.
- Helium: Blending helium with argon can increase penetration and weld metal fluidity. Optimal flow rates such as those for fupa 12 settings contribute to efficient welding.
- Hydrogen: Combining hydrogen with argon, typically no more than 5%, helps enhance heat input and guards against oxidation.
Importance of Flow Rates in TIG Welding
Using the correct TIG gas flow rate is critical. Practical guidance suggests setting a flow rate that minimizes turbulent gas flow while maximizing shielding coverage.
The Dynamics of MIG Welding
MIG welding is a faster, more cost-effective approach, utilizing a continuously fed filler wire that supplies current to maintain the arc. Suitable for thicker materials, this method thrives in applications requiring rapid productivity.
Selecting the Best MIG Welding Gases
For optimal MIG welding outcomes, consider:
- Argon: Widely used due to its stability and easy handling.
- Oxygen: When combined with argon, it enhances arc stability. However, caution is advised as higher levels can lead to porosity.
- Carbon Dioxide: Mixed with argon to deepen weld penetration, though at the cost of arc stability challenges.
- Helium: Greater gas flow rates are necessary, but this light gas can improve welding speed and quality.

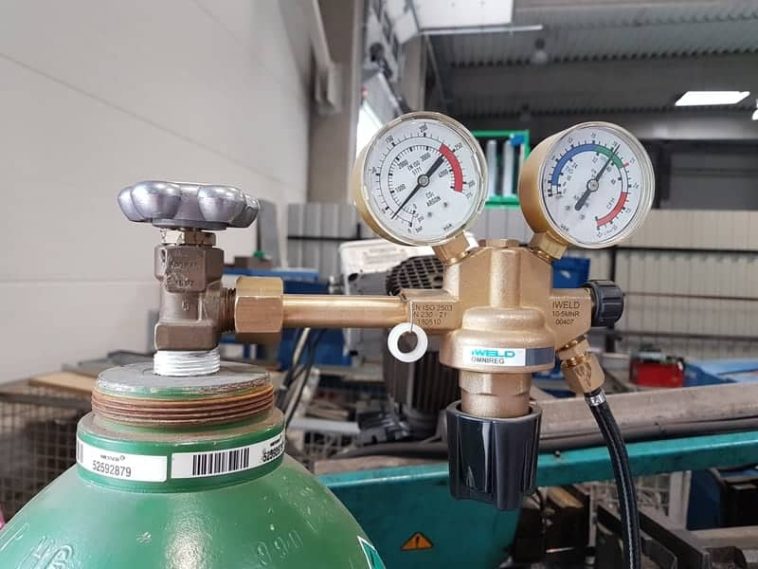

Understanding Gas Flow Settings
Optimizing flow rates is essential in achieving suitable gas flow. It is advised to adhere to recommended flow rates relative to the specific welding setup, paying close attention to the shielding gas coverage to prevent contamination.
Frequently Asked Questions
What is the recommended argon flow rate for TIG welding?
The flow rate should generally be between 10 to 35 CFH, but it may vary depending on the application and environmental conditions.
How can shielding gas affect weld quality?
Proper shielding protects the weld from oxidation and contamination, ensuring improved weld integrity and appearance.
Why is the cup size rule important in welding?
It helps determine the appropriate gas flow to maintain an effective protective gas shield around the weld area.
By mastering the choice of shielding gases and their application in gas flow settings, welders can enhance both the quality and efficiency of their projects, be it in TIG or MIG welding scenarios.
